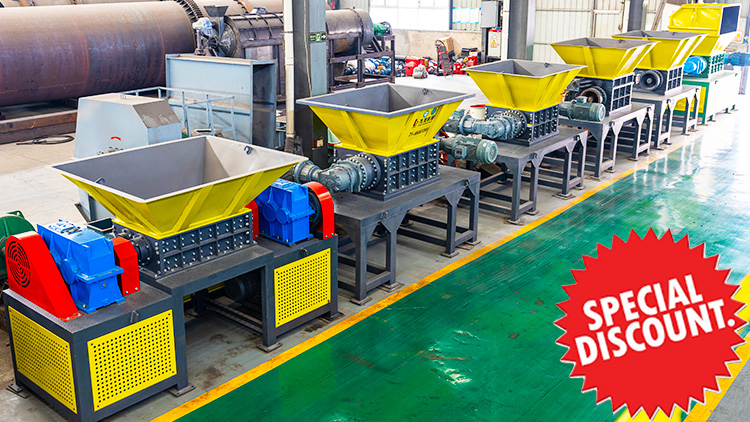

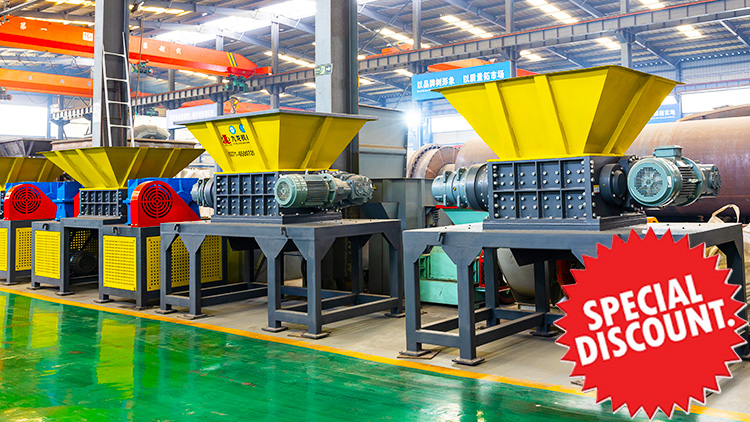

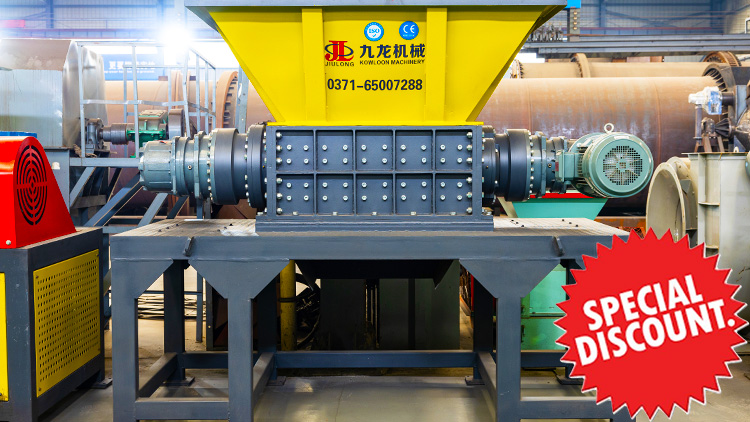

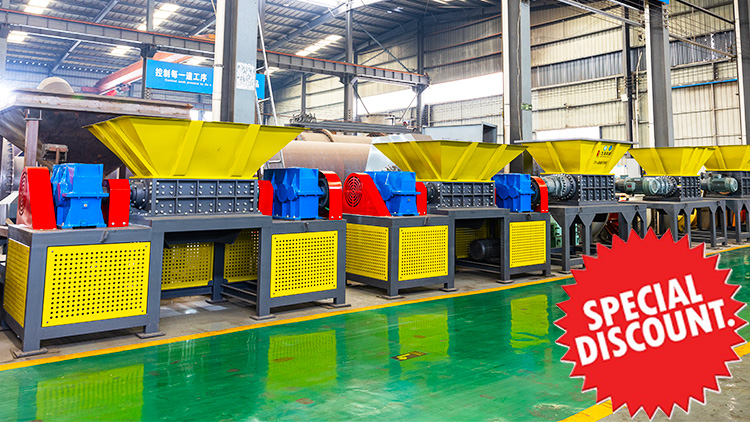

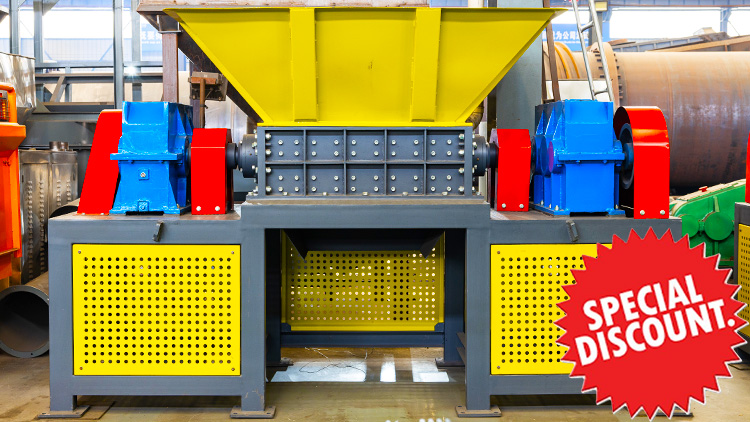

Small Double Shaft Shredder is a compact yet powerful size-reduction machine designed for workshops, small recycling plants, and pilot processing lines. With its low-speed, high-torque twin-shaft design, it efficiently tears and shears materials such as plastics, rubber, wood, light metal scrap, textiles, and cardboard into manageable pieces for further recycling.
Despite its small footprint, this shredder delivers stable performance, strong cutting force, and low noise operation. The intermeshing alloy steel blades ensure excellent wear resistance and long service life, while the intelligent control system provides overload protection and smooth running.
√ Plastic: PVC, PE, PP, ABS, PET, HDPE, pipes, bottles, barrels, and other soft plastic waste, etc.
√ Wood: tree bark, leaves, wood board, timber planks, lumber, wooden strips, etc.
√ Biomass: sugarcane bagasse, corn cob, palm fiber, coconut shells, etc.
√ Household waste: garbage, fabric, sponge, leather and so on.
Soft Plastic Waste
Wood Waste
Green Waste
Household Waste
Fabric Waste
Small Double Shaft Shredder operates on a low-speed, high-torque principle to efficiently tear and shear materials into smaller pieces. When waste materials are fed into the hopper, two parallel shafts equipped with intermeshing alloy steel blades rotate toward each other. As the blades grip the material, they apply strong cutting, tearing, and squeezing forces that break bulky or tough items down step by step.
The synchronized rotation of the twin shafts ensures continuous feeding without material blockage, while the low rotational speed minimizes noise, dust, and wear. An intelligent control system monitors the load and automatically reverses the shafts if overload occurs, protecting the machine from damage.
Please watch the double shaft shredder working video below:
Small size makes it ideal for workshops, labs, and recycling plants with limited space.
Provides strong shredding force with low noise, low dust, and stable performance.
Suitable for plastics, rubber, wood, cardboard, textiles, and light metal scrap.
Wear-resistant cutters ensure long service life and consistent shredding efficiency.
Intelligent control automatically reverses the shafts to prevent jamming and damage.
Simple structure allows quick blade replacement and convenient daily maintenance.
Lower power consumption compared to high-speed crushers while maintaining strong output.
Can be used as a standalone unit or integrated into a small recycling line.
Before choosing a double shaft shredder model, customers should consider material type, output size requirement, processing capacity, and workshop conditions. Different blade thickness, shaft structure, and motor power are designed for various recycling applications. The following technical parameters will help you select the most suitable shredding solution.
|
Model |
JLSS400 |
JLSS600 |
|
Motor |
5.5 kW |
7.5kW+7.5kW |
|
Shaft |
solid shaft, made of 40Cr, hardened and tempered | |
|
Shredder chamber (inner) |
400*370 mm |
542*550 mm |
|
Rotor rotary speed |
18 rpm |
18 rpm |
|
Shaft diameter |
170 mm |
260 mm |
|
Dimension |
1710*750*1310 mm |
3660*1100*1800 mm |
|
Weight |
1000 kg |
1600 kg |

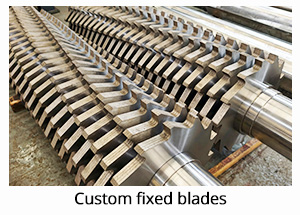

The blade materials of a Double Shaft Shredder play a crucial role in determining its cutting efficiency, wear resistance, and service life. Typically, the shredder blades are made from high-strength alloy steel or tool steel, such as 9CrSi, M6V, Cr12MoV, H13, SKD-11, D2, or Cr12Mo1V1, etc. which offer excellent hardness and impact resistance.
Through advanced heat treatment processes like quenching and tempering, the blades achieve a perfect balance between toughness and durability, allowing them to withstand continuous heavy-duty shredding of metal scrap, plastics, tires, and other tough materials. In some high-end applications, surface hardening or coating technologies are also applied to further enhance wear resistance and extend blade lifespan.
With superior blade materials and precise manufacturing, the Double Shaft Shredder ensures stable cutting performance, reduced downtime, and long-term reliable operation in demanding recycling environments.
Tell us your waste type, capacity, and workshop size. Our engineers will recommend the right model, provide a price list, and design a free 2D layout plan for your recycling business. Contact us now!
Our Double Shaft Shredder has been successfully delivered and installed in numerous global recycling projects, serving customers across Europe, Asia, the Middle East, and South America. These real-world applications cover a wide range of industries, including scrap metal recycling plants, waste processing facilities, and material recovery centers.
Each project case demonstrates the machine’s strong shredding capacity, stable performance, and adaptability to different materials such as metal scrap, tires, plastics, and industrial waste. From initial installation to long-term operation, our equipment consistently delivers high efficiency, low maintenance requirements, and reliable output quality.
These global references not only highlight the proven performance of our Double Shaft Shredder but also reflect our commitment to providing customized recycling solutions and professional support for customers worldwide.
Project 1: In 2023, a JLSS2000D metal shredder was installed in St. Petersburg, Russia to process 15 tons/hour scrap metal and car bodies. The system became the primary equipment in the customer’s recycling line, significantly improving shredding efficiency and metal recovery rate.
Project 2: In 2021, a scrap metal recycling company in Poland installed a Model JLSS2000D metal shredder at its facility to process heavy metals, waste oil drums, and industrial waste. This equipment is capable of continuous operation under heavy loads, processing over 20 tons of scrap metal per hour.
Project 3: In 2019, a recycling company in Romania selected the JLSS2000D model to shred non-metallic materials, steel drums, and aluminum containers.
Project 4: In 2025, a JLSS2000D metal shredder was installed in Algeria to process scrap car frames and heavy steel sections at 18 tons per hour.
Project 5: In South Africa, a client utilizes the JLSS2000D metal shredder as the primary processing unit within a complete scrap metal recycling production line. This shredder is capable of performing impeccable pre-treatment of the material, thereby fully preparing it for subsequent crushing and sorting operations.
Project 6: In 2025, a JLSS2000D unit was installed in Saudi Arabia for shredding heavy steel structures, broken bridge aluminum, and scrap vehicle parts at approximately 20 tons per hour.
Our double shaft shredder can process a wide range of bulky and hard materials, including scrap metal, steel drums, tires, plastic containers, appliances, wood waste, electronic waste, and industrial solid waste. Different blade configurations can be customized according to the material type.
The output size depends on the blade thickness and shaft configuration. Materials are typically shredded into strips or irregular pieces suitable for further conveying, separation, or secondary crushing.
Depending on the model and material type, the machine can process approximately 1–30 tons of material per hour. Capacity may vary based on feeding conditions and material hardness.
A double shaft shredder is designed for tearing bulky and hard materials with strong torque, while a single shaft shredder is more suitable for controlled-size shredding of softer materials such as plastic and wood.
The blades are made from high-strength alloy steel with excellent wear resistance. Blade life depends on the material being processed, but the machine is designed for convenient blade replacement and maintenance.
Yes. The shredder is equipped with an automatic reverse function that activates when overloaded, helping protect the blades and shafts from damage caused by difficult materials.
Yes. The machine is commonly integrated with conveyors, magnetic separators, granulators, and other recycling equipment as part of a complete recycling system.
Yes. We provide installation guidance, operation training, technical support, and after-sales service to help customers operate the machine efficiently and safely.
Share your scrap materials, required capacity, and available space with us. Our engineers will analyze your project, recommend the suitable double shaft shredder model, and provide a detailed price together with a free 2D layout plan for your scrap recycling line.
With 20 years of experience in recycling equipment manufacturing, Kowloon Machinery provides reliable and heavy-duty double shaft shredders designed for demanding industrial applications. More than 3000 machines have been delivered to over 80 countries, serving metal recycling plants, tire recycling lines, biomass waste recycling factory, and solid waste processing projects worldwide. Every shredder is fully tested before shipment to ensure stable performance and long service life. Backed by CE and ISO certifications, professional engineering support, and customized recycling solutions, Kowloon Machinery helps customers build efficient and profitable shredding systems.
We warmly welcome customers from around the world to visit our factory and see the double shaft shredder manufacturing process in person. During the visit, you can observe raw material machining, blade production, machine assembly, and live testing with real scrap materials. This transparent process helps customers clearly understand our production standards, quality control, and equipment performance before placing an order.
Our engineers will also provide on-site explanations and discuss your project requirements, offering practical suggestions for your waste recycling line. A factory visit is the best way to build confidence in the machine quality and our long-term cooperation.

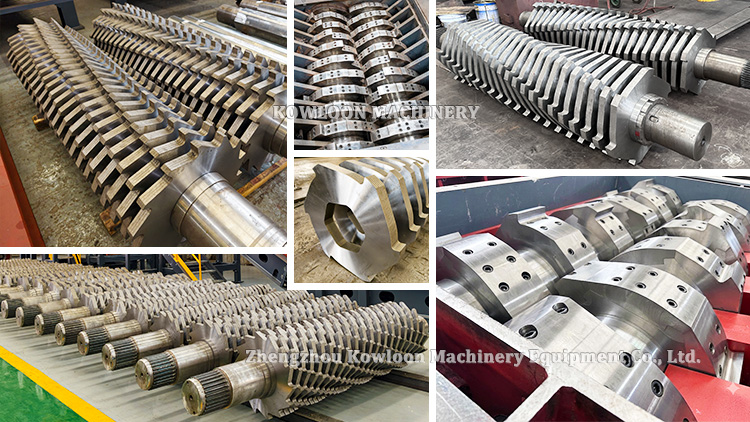

To ensure long-term, stable operation of the double shaft shredder, we provide a complete spare parts supply system and reliable after-sales support. Key components such as shredder blades, shafts, bearings, and gearbox parts are manufactured with high-strength alloy materials and kept in regular stock for fast replacement. Our blade design focuses on wear resistance and easy maintenance, allowing customers to reduce downtime and operating costs.
We also offer clear guidance on blade replacement, routine maintenance, and spare parts management. With sufficient inventory and responsive technical support, customers can quickly obtain original parts and professional assistance whenever needed, ensuring the double shaft shredder continues to run efficiently in demanding waste recycling environments.
We provide complete support for the shipping and installation of every double shaft shredder to ensure smooth delivery and fast commissioning at the customer site. Before shipment, each machine is carefully packed, reinforced, and loaded to prevent damage during long-distance transportation. Detailed layout drawings, foundation requirements, and electrical connection plans are prepared in advance to help customers get ready before the equipment arrives.
After delivery, our engineers offer remote guidance or on-site installation support, including assembly, wiring, testing, and operator training. From unloading the machine to trial operation with real scrap materials, we ensure the double shaft shredder runs safely and efficiently as part of the waste recycling line.
Our double shaft shredders are manufactured in compliance with international quality and safety standards to ensure reliable performance in demanding recycling environments. The equipment is built according to CE requirements for machinery safety and follows ISO quality management standards throughout the production process. From raw material selection and machining to assembly and final testing, every step is strictly controlled to guarantee durability and operational stability. Certification documents and test reports can be provided upon request, giving customers full confidence that the double shaft shredder meets global industry requirements for waste recycling applications.
