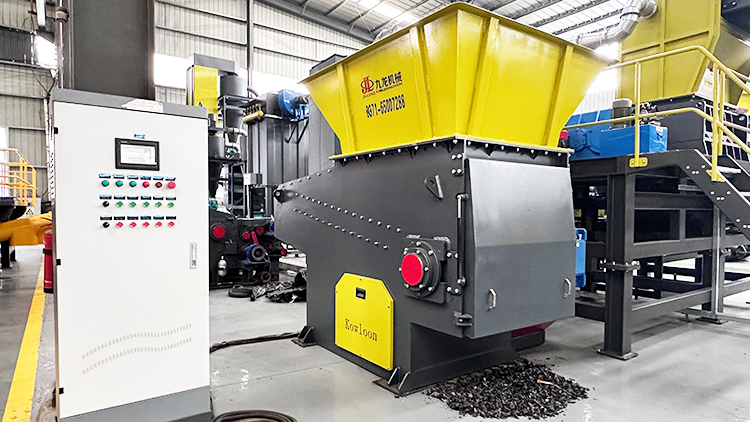

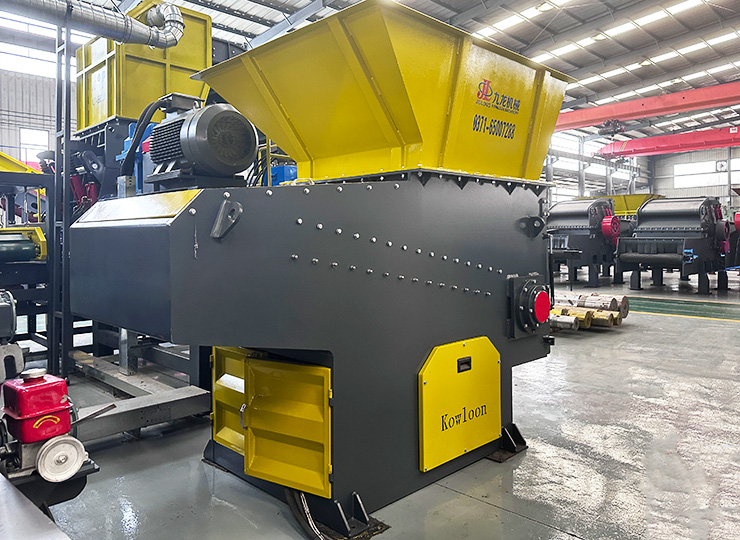

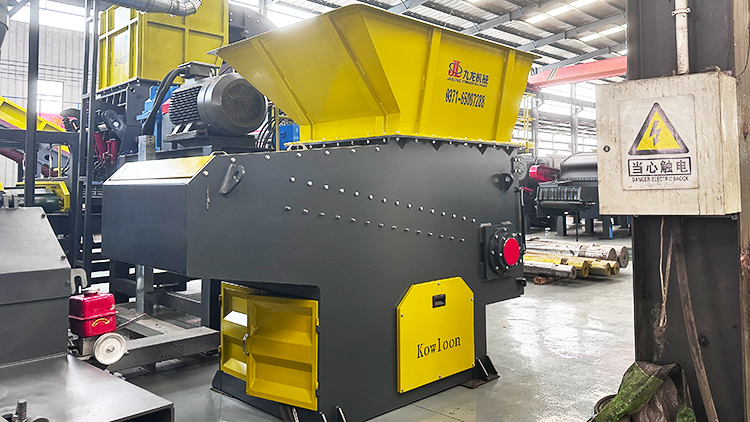

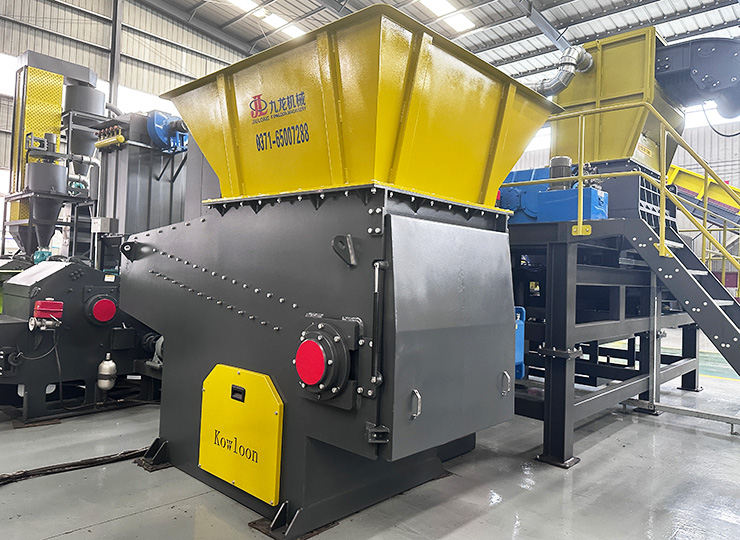

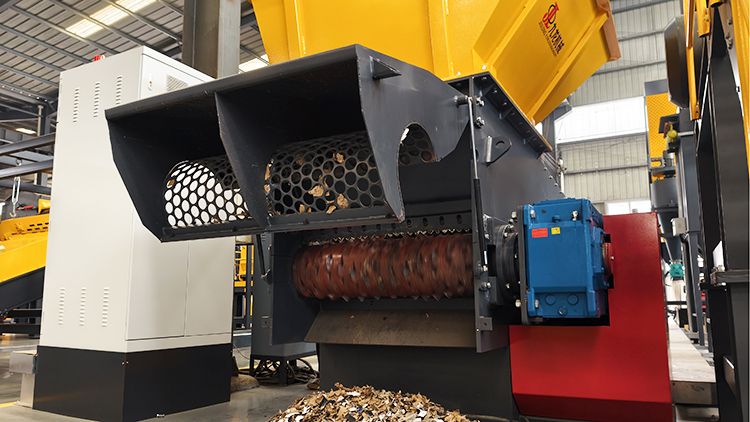

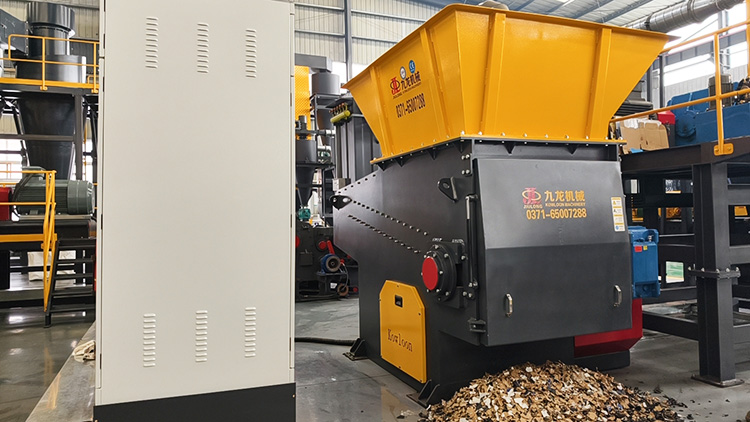

Single Shaft Shredder is designed for efficient size reduction of plastics, wood waste, rubber, textile scraps, RDF, electronic waste, and light metal materials, municipal solid waste, industrial waste, etc. It uses a high-torque rotor equipped with replaceable cutting blades and a hydraulic feeding system to efficiently shred materials against a stationary counter knife. A built-in screen controls the final output size, ensuring consistent particle dimensions for downstream processing.
Kowloon Machinery Single Shaft Shredders can be customized according to material characteristics, required output size, and production capacity, ensuring optimal performance for different recycling applications.
Common materials processed by a Single Shaft Shredder include:
1. Plastic Waste: Plastic drums, HDPE containers, PET bottles, plastic pipes, plastic pallets, injection molding scraps, plastic lumps, and plastic films.
2. Wood Waste: Wood pallets, furniture waste, plywood, MDF boards, tree branches, wooden crates, and construction wood scraps.
3. Textile Waste: Fabric scraps, carpets, nonwoven materials, clothing waste, and industrial textiles.
4. Municipal & Industrial Waste: RDF, commercial waste, packaging waste, bulky waste, and general industrial refuse.
5. Light Metal Scrap: Aluminum profiles, aluminum cans, thin metal sheets, and mixed non-ferrous materials.
Plastic Waste
Wood Waste
Metal Waste
Fabric Waste
Solid Waste

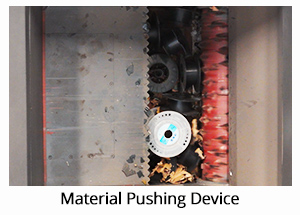

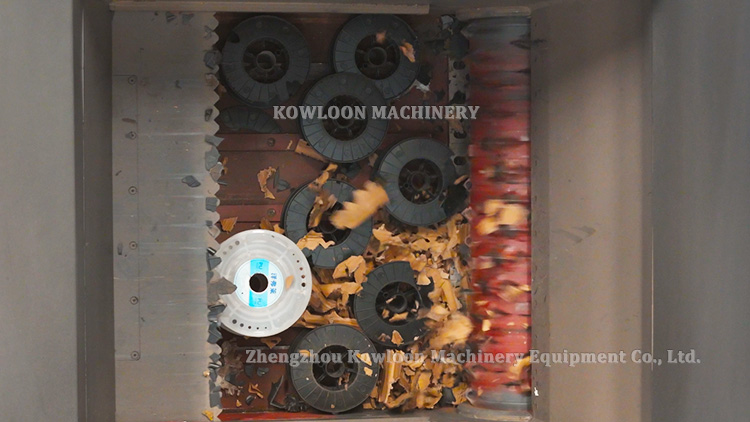

Single Shaft Shredder works by using a high-torque rotor equipped with replaceable cutting blades to reduce materials into uniform-sized particles. Materials are fed into the shredding chamber through the hopper, where a hydraulic ram continuously pushes them toward the rotating shaft for efficient cutting and tearing against a stationary counter knife. Once the materials are shredded, they pass through a screen that controls the final output size, ensuring consistent particle dimensions. The processed material is then discharged for further recycling operations such as washing, granulating, sorting, or fuel production. This controlled shredding process provides high efficiency, uniform output, and reliable performance for processing plastics, wood waste, light metal, textiles, RDF, and various industrial waste materials.
With years of experience in recycling equipment manufacturing, Kowloon Machinery provide customized shredding solutions tailored to different materials, capacity requirements, and production goals. From wood waste recycling plants in Southeast Asia to rubber waste processing projects in Middle East and alternative fuel preparation systems in Europe, our Single Shaft Shredders have earned the trust of customers through reliable performance, durable construction, and consistent output quality.
Each project is supported by our professional engineering team, ensuring efficient installation, smooth operation, and long-term technical support. These successful global applications demonstrate Kowloon Machinery's commitment to delivering high-performance shredding solutions for the recycling industry worldwide.

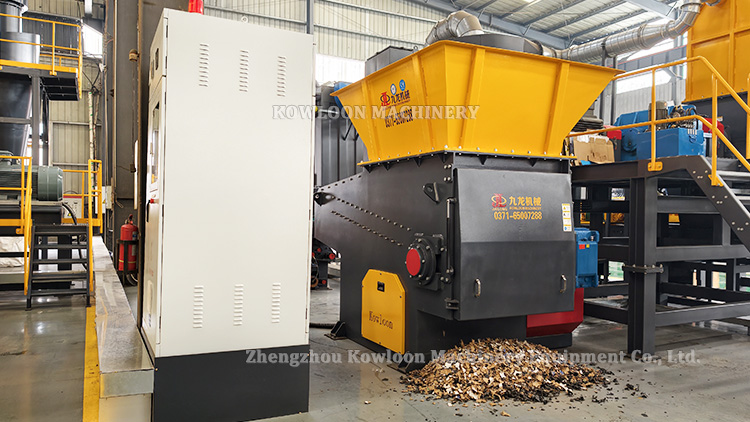

The technical parameters below provide an overview of key specifications, including rotor size, motor power, chamber dimensions, and outlet material size. Our shredders are designed to handle a variety of recyclable materials such as plastics, wood waste, scrap metal, textiles, RDF, and industrial waste while delivering stable performance and consistent output sizes. For customers with specific material characteristics or throughput requirements, customized configurations are available to ensure optimal shredding efficiency and long-term operational reliability.
|

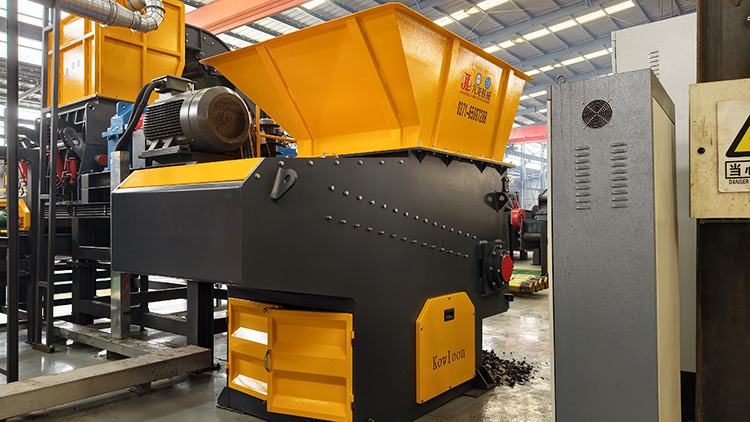

Model |
JLDZ1200 |
|
Motor |
75kw |
|
Rotor speed |
85rpm |
|
Material pushing way |
Hydraulic |
|
Shredding shaft working length |
1200mm |
|
Shredding rotor diameter |
φ400mm |
|
Rotary blades Number |
80pcs |
| Fixed blade number |
5pcs |
| Screen mesh size |
φ30mm |
| Output material size |
<30mm |
Automatic overload protection system detects excessive loads and activates protective measures to prevent damage to the motor, rotor, and other critical components, improving equipment reliability and lifespan.

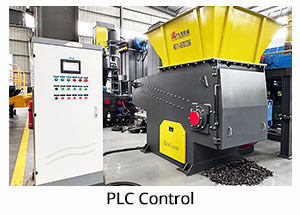

Equipped with a PLC-controlled system, emergency stop buttons, safety cover sensors, and automatic shutdown functions, the Single Shaft Shredder provides comprehensive protection for operators and ensures safe operation in demanding recycling environments.

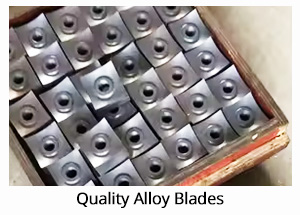

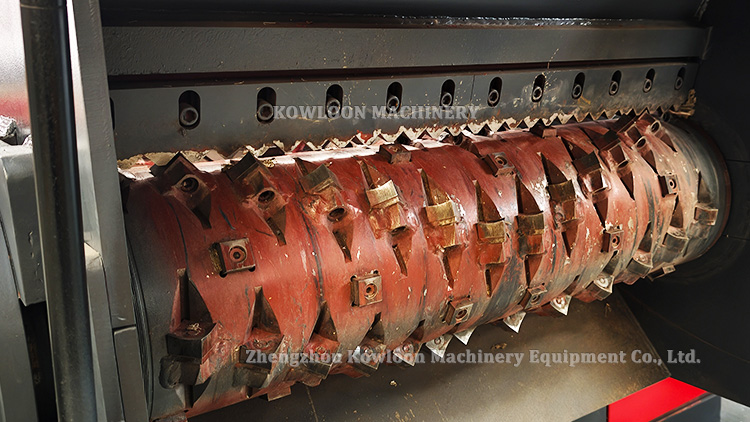

High-quality alloy steel blades offer excellent wear resistance and cutting performance, enabling the machine to process tough materials efficiently while reducing blade replacement frequency and maintenance costs.
Built with a reinforced steel frame and heavy-duty shredding chamber, the machine is designed to withstand continuous industrial use and deliver reliable performance over a long service life.
Its compact structure requires less floor space compared to larger shredding systems, making it suitable for recycling plants with limited installation areas while maintaining high processing efficiency.
The low-speed, high-torque rotor design delivers powerful shredding performance while consuming less energy, helping reduce operating costs during long-term production.
The modular design allows quick access to key components, making routine maintenance, blade replacement, and equipment inspection more convenient and reducing overall downtime.

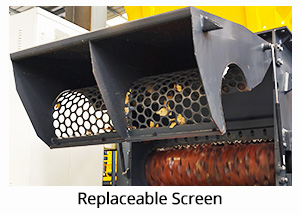

With an integrated screen system and controlled shredding process, the Single Shaft Shredder produces uniform material sizes that are ideal for subsequent recycling operations such as washing, granulating, sorting, pelletizing, or RDF production.
Tell us your scrap type, capacity, and workshop size. Our engineers will recommend the right model, provide a price list, and design a free 2D layout plan for your recycling business. Contact us now!

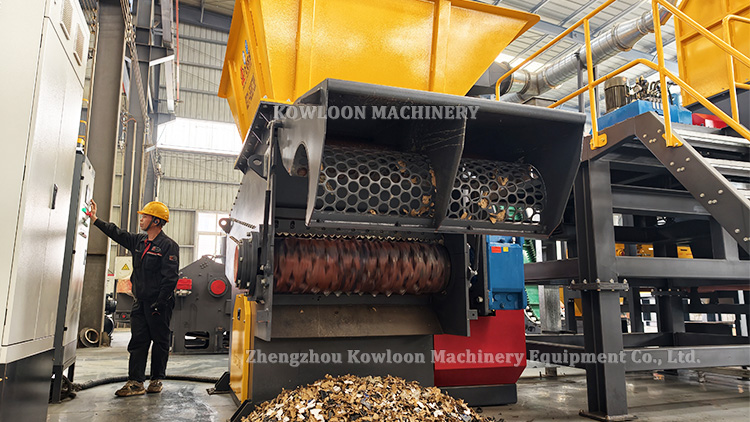

| Comparison Item | Single Shaft Shredder | Double Shaft Shredder |
| Working Principle | One rotor with rotating blades and a screen for controlled output size | Two counter-rotating shafts that tear and shear materials |
| Output Size Control | Excellent, adjustable through screen size | Limited, usually produces irregular material sizes |
| Screen System | Equipped with screen for uniform output | Typically no screen installed |
| Particle Size Uniformity | High | Medium to Low |
| Suitable Materials | Plastics, wood, light metal, textiles, RDF, e-waste, industrial waste | Tires, metal scrap, bulky waste, large plastic products |
| Processing Capacity | Medium to High | High for bulky materials |
| Material Reduction Ratio | High | Medium |
| Secondary Processing Requirement | Often reduced due to controlled output size | Usually requires additional granulation or shredding |
| Application Focus | Size reduction and material preparation for recycling lines | Primary shredding of bulky and difficult materials |
| Investment Cost | Generally lower for controlled size-reduction applications | Often higher for heavy-duty primary shredding projects |
Which One Should You Choose?
Single Shaft Shredder is typically the preferred choice when precise output size, high material uniformity, and downstream processing efficiency are important. It is widely used in plastic recycling, wood recycling, RDF production, and industrial waste processing.
Double Shaft Shredder is more suitable for primary shredding of bulky materials such as waste tires, metal scrap, large pallets, bulky biomass waste, and municipal solid waste where output size control is less critical.
A: Single Shaft Shredders can handle a wide range of materials, including plastic pipes, plastic drums, rubber waste, wood scraps, light metal, textile waste, cables, RDF, and other recyclable materials.
A: The output size depends on the screen installed in the machine. Different screen sizes can be selected to achieve the particle size required for downstream recycling processes.
A: The ideal model depends on the type of material, material size, moisture content, required output size, and production capacity. Kowloon Machinery can recommend a suitable configuration based on your specific project requirements.

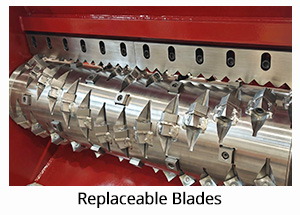

A: Yes. The cutting blades are designed to be replaceable and can be rotated or changed when worn, helping to maintain shredding efficiency and reduce maintenance costs.
A: Yes. Kowloon Machinery offers customized solutions, including rotor design, screen size, motor power, feeding system, and discharge configuration to meet different material processing requirements.
A: The processing capacity varies depending on the material type, density, moisture content, and machine model. Standard Single Shaft Shredders can typically process from several tons to tens of tons material per hour. Kowloon Machinery offers models for both small-scale and large-scale recycling operations.
A: With proper operation and regular maintenance, a high-quality Single Shaft Shredder can provide many years of reliable service. The robust machine structure, wear-resistant blades, and intelligent protection system help extend equipment lifespan and reduce long-term operating costs.
A: Kowloon Machinery provides equipment warranty, technical guidance, spare parts support, and professional after-sales service to ensure stable operation and long-term performance of your Single Shaft Shredder.
Looking for a reliable Single Shaft Shredder manufacturer? Need Help Choosing the Right Model? Request a Free Consultation and Quotation Now!
Kowloon Machinery is committed to providing reliable and efficient shredding solutions for the global recycling industry. Our Single Shaft Shredders are engineered with heavy-duty construction, wear-resistant blades, intelligent PLC control systems, and low-speed high-torque technology to ensure stable performance, high productivity, and long service life. We offer customized machine configurations based on material characteristics, output requirements, and production capacity, helping clients achieve maximum operational efficiency. From equipment selection and technical consultation to installation guidance and after-sales support, our professional team provides comprehensive service throughout every stage of your project.
With 20 years of experience in recycling equipment manufacturing, Kowloon Machinery provides reliable and heavy-duty double shaft shredders designed for demanding industrial applications. More than 3000 machines have been delivered to over 80 countries, serving metal recycling plants, tire recycling lines, biomass waste recycling factory, and solid waste processing projects worldwide. Every shredder is fully tested before shipment to ensure stable performance and long service life. Backed by CE and ISO certifications, professional engineering support, and customized recycling solutions, Kowloon Machinery helps customers build efficient and profitable shredding systems.
We warmly welcome customers from around the world to visit our factory and see the equipment manufacturing process in person. During the visit, you can observe raw material machining, blade production, machine assembly, and live testing with real materials. This transparent process helps customers clearly understand our production standards, quality control, and equipment performance before placing an order.
Our engineers will also provide on-site explanations and discuss your project requirements, offering practical suggestions for your waste recycling line. A factory visit is the best way to build confidence in the machine quality and our long-term cooperation.
To ensure long-term, stable operation of our equipment, we provide a complete spare parts supply system and reliable after-sales support. Key components such as blades, shafts, bearings, and gearbox parts are manufactured with high-strength alloy materials and kept in regular stock for fast replacement. Our blade design focuses on wear resistance and easy maintenance, allowing customers to reduce downtime and operating costs.
We also offer clear guidance on blade replacement, routine maintenance, and spare parts management. With sufficient inventory and responsive technical support, customers can quickly obtain original parts and professional assistance whenever needed, ensuring the equipment continues to run efficiently in demanding waste recycling environments.
We provide complete support for the shipping and installation of every equipment to ensure smooth delivery and fast commissioning at the customer site. Before shipment, each machine is carefully packed, reinforced, and loaded to prevent damage during long-distance transportation. Detailed layout drawings, foundation requirements, and electrical connection plans are prepared in advance to help customers get ready before the equipment arrives.
After delivery, our engineers offer remote guidance or on-site installation support, including assembly, wiring, testing, and operator training. From unloading the machine to trial operation with real materials, we ensure the equipment runs safely and efficiently as part of the waste recycling line.
Our equipments are manufactured in compliance with international quality and safety standards to ensure reliable performance in demanding recycling environments. The equipment is built according to CE requirements for machinery safety and follows ISO quality management standards throughout the production process. From raw material selection and machining to assembly and final testing, every step is strictly controlled to guarantee durability and operational stability. Certification documents and test reports can be provided upon request, giving customers full confidence that the equipment meets global industry requirements for waste recycling applications.
