Models: SWC800, SWC1000, SWC1400, SWC1600
Capacity: 20m³-75m³/hour
Raw Material: Tree logs, branches, bamboo, timber, and other wood waste.

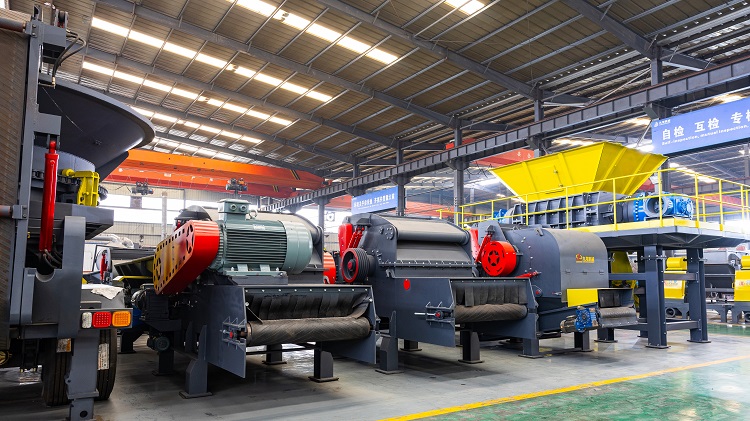

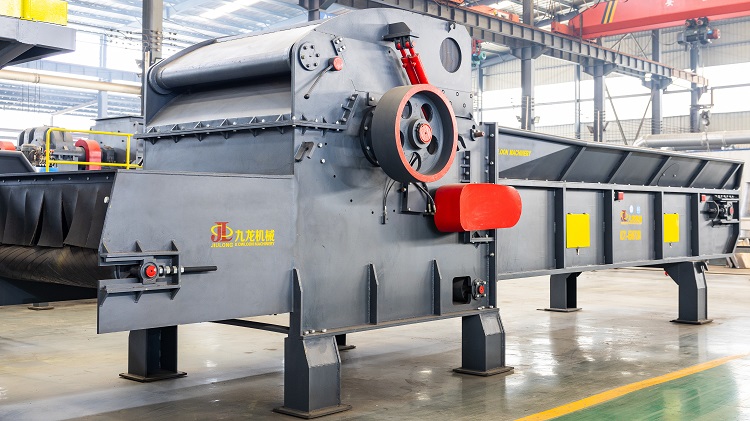

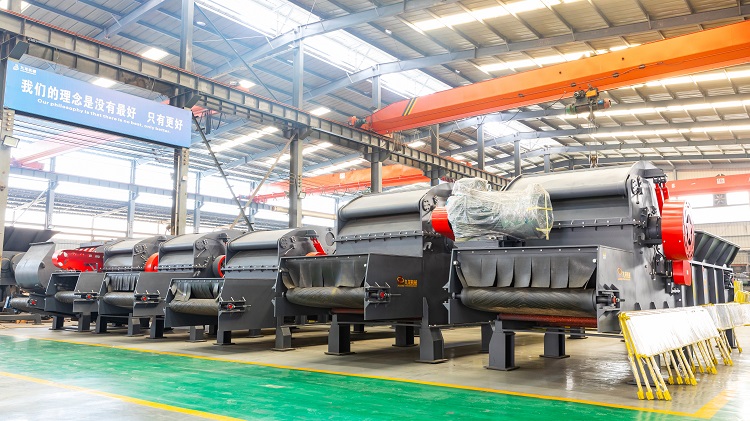

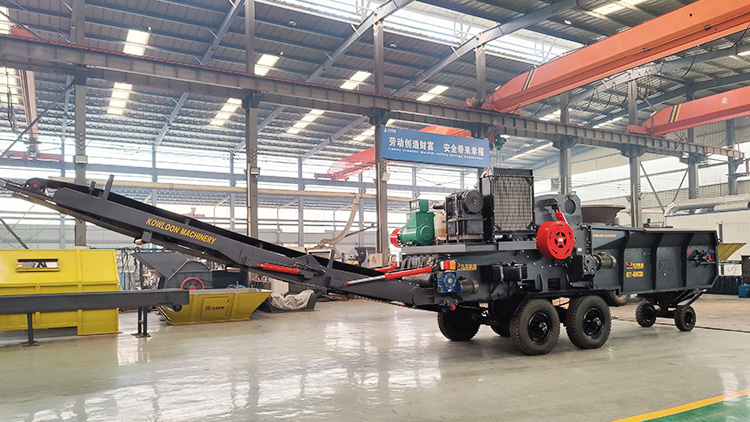

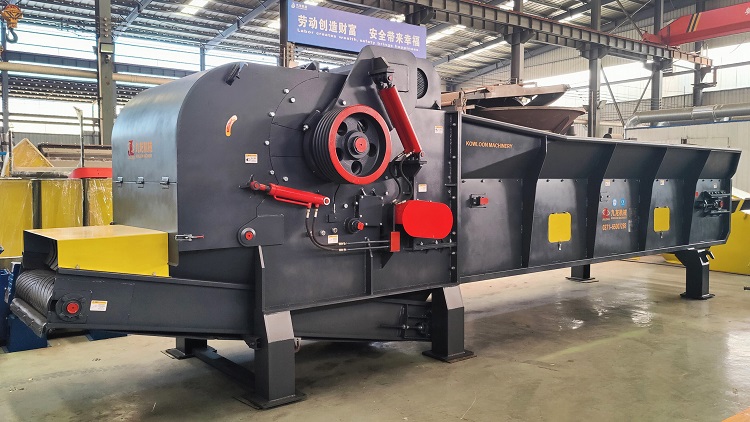

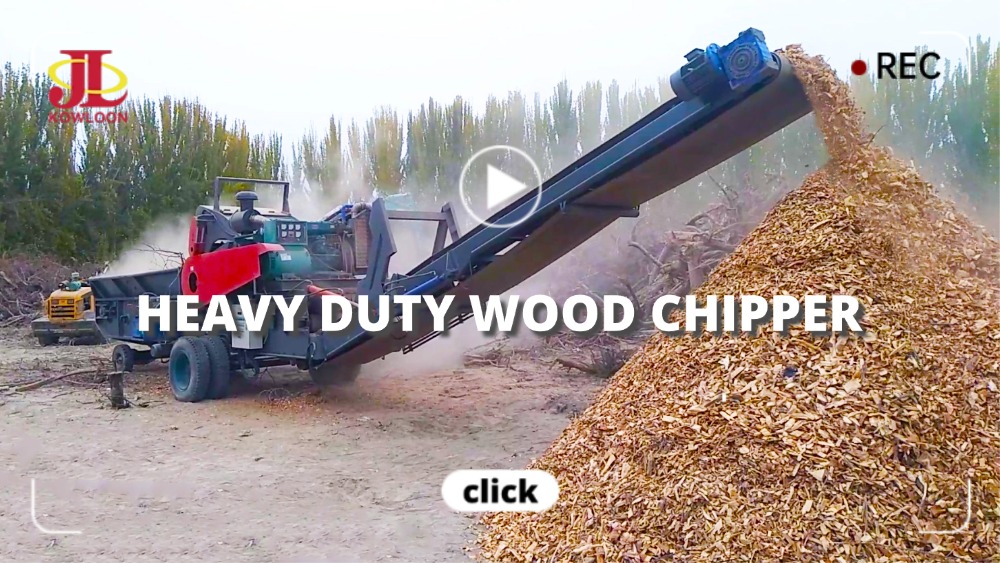

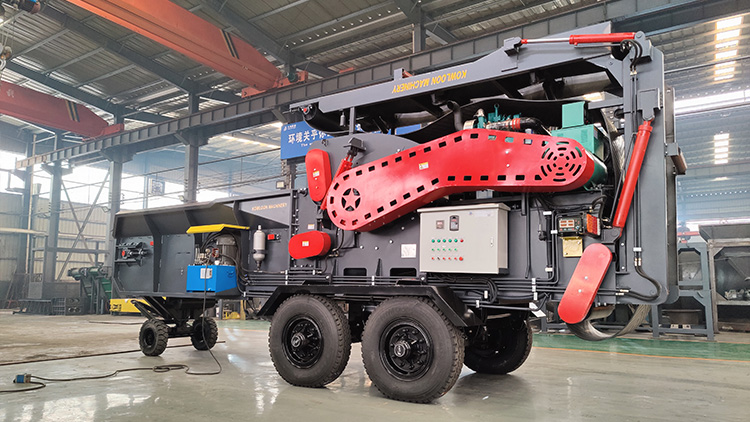

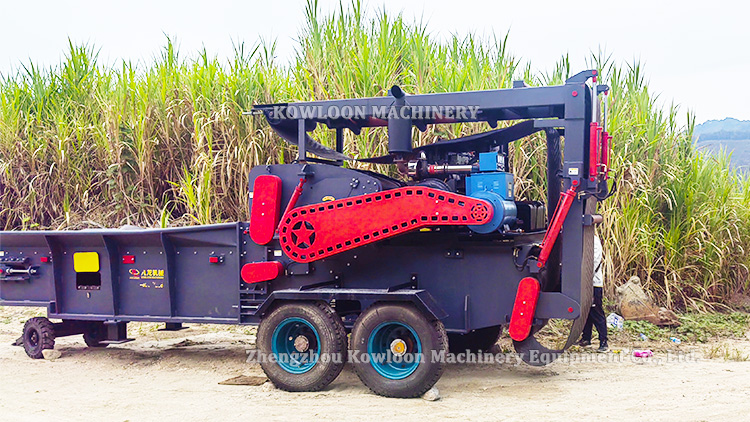

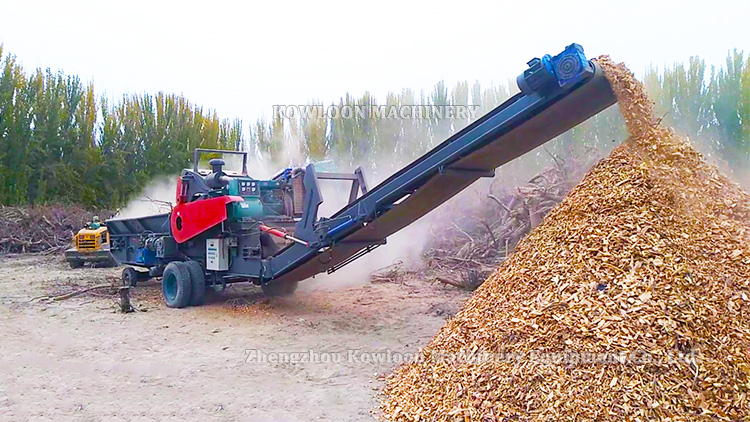

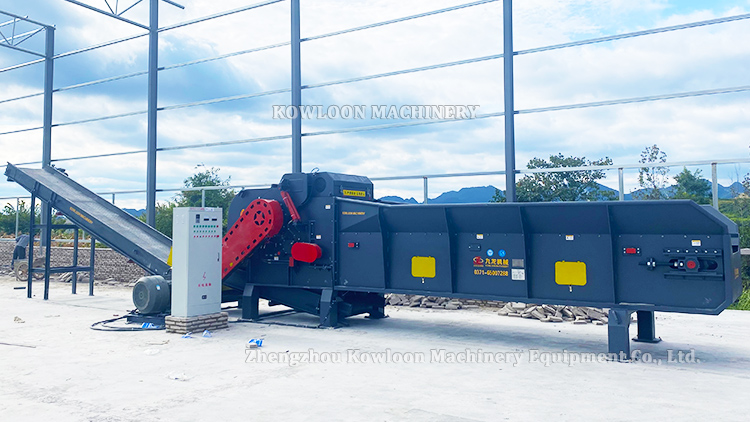

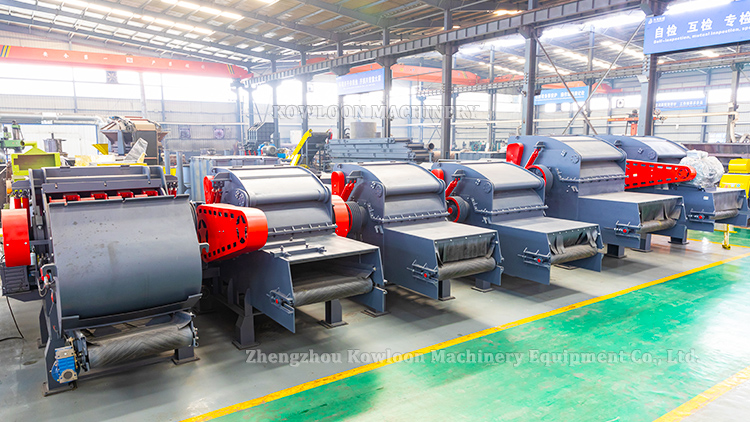

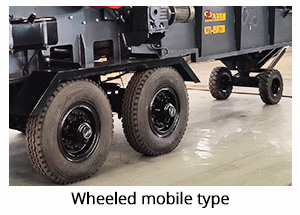

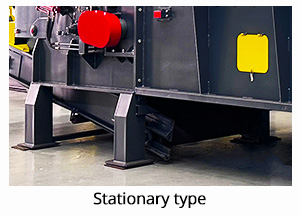

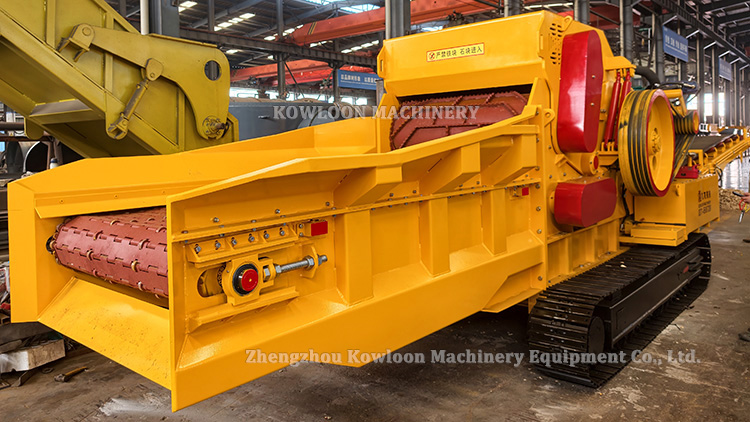

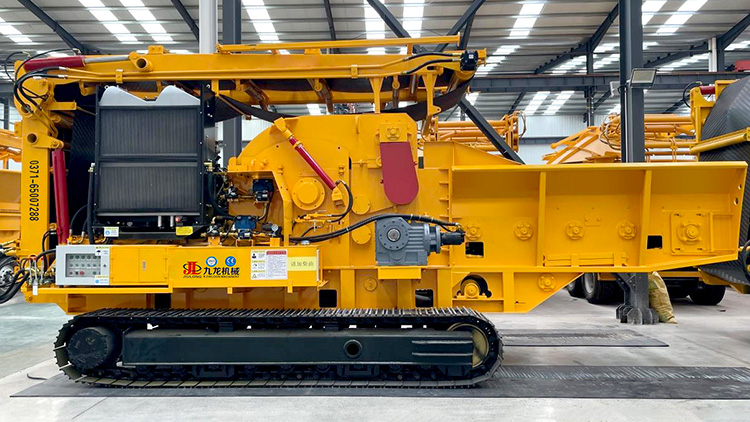

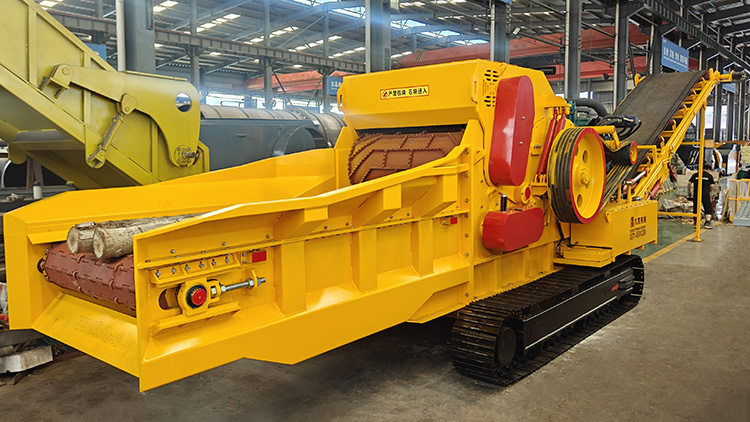

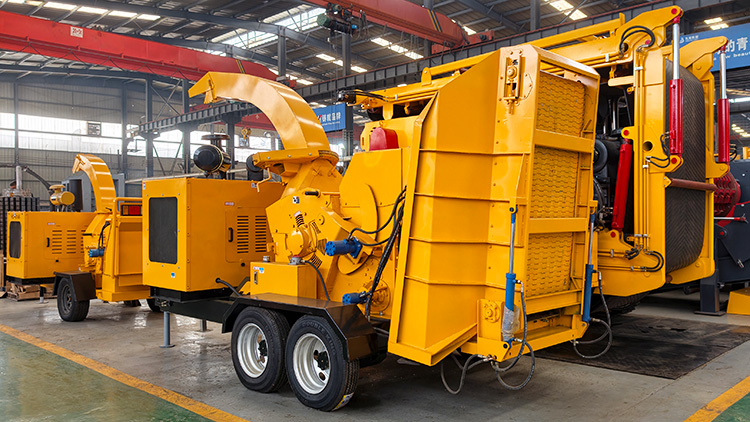

Heavy Duty Wood Chipper is a multi-functional biomass waste reduction equipment used for various materials, such as tree logs, branches, bark, wood waste, corn stalks, waste furniture, nailed boards, pallets, etc. We supplies both stationary and trailed types.
Heavy Duty Wood Chipper has a characteristic of compact and reasonable structure, simple operation, high production capacity, wide adaptability of raw materials, high quality crushing particle size, high safety and convenient maintenance. It adopts chain plate feeding to make the feeding smoother and greatly improve the production capacity, equipped with different rotors to realize chipping, grinding, chopping functions.
Wood waste such as tree roots logs branches, bamboo, wood scraps, wood planks sticks strips, waste timber, wooden pallets, wooden brackets, wooden box, wooden furniture, wooden doors and windows, etc.
Wood Waste
Wooden Pallet
Timber Waste
Wooden Furniture
Wooden Box
Branches
Tree Logs
Roots
Bamboo
Green Waste

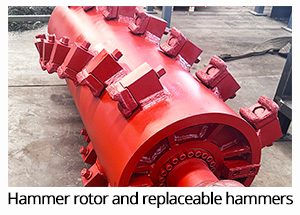

1. Modular rotors, one machine provide three kinds of rotors for options: hammer rotor, chipping rotor, fine grinding rotor, the blades/hammers are replaceable.
2. Cover of crushing chamber could be opened by hydraulic, easy for maintenance and changing blades.
3. Thick strengthen screen, sieve size is customizable for different requirements to get different size output.

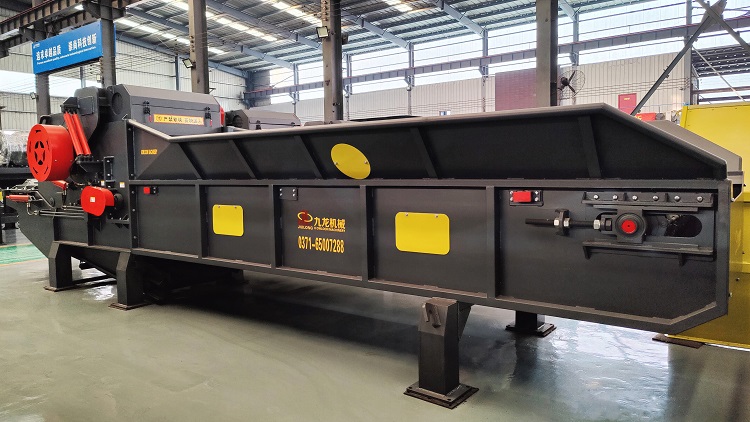

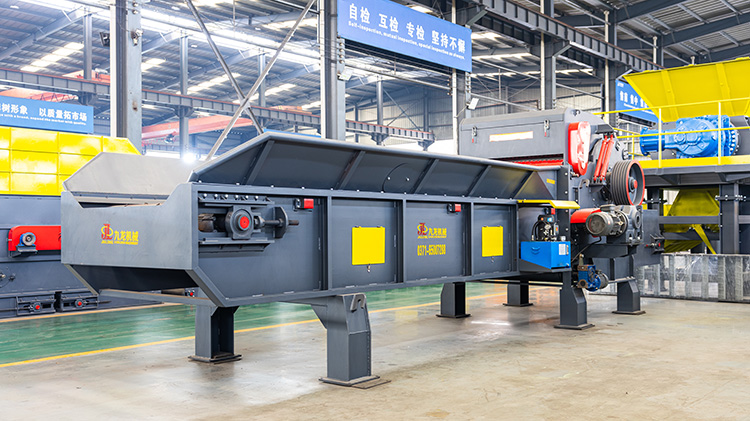

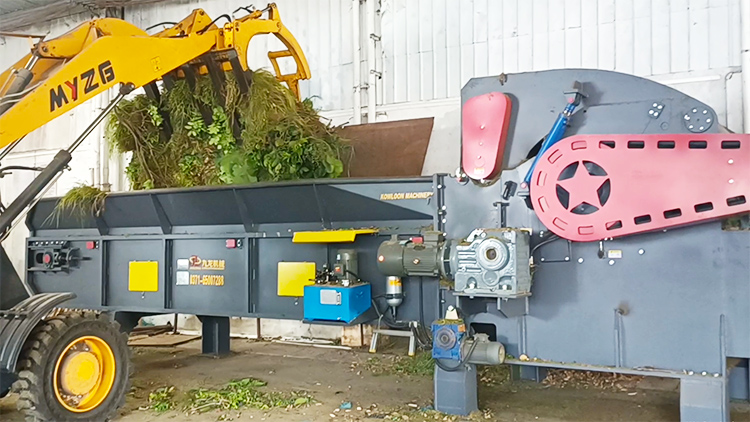

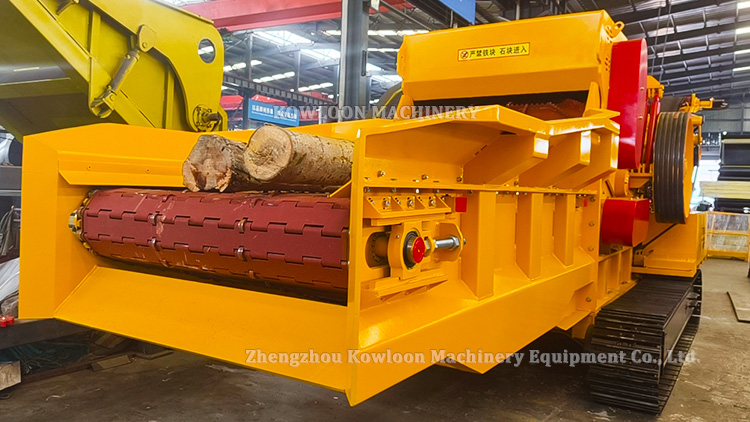

4. Forced feeding system is our proven technique; ensure continuously feeding and large working capacity, even big roll of tree logs or high wooden case is no problem to infeed for this monster.
5. High Capacity with larger feeding port than traditional type, which could process big log in arrange of 450mm to 700mm diameter.

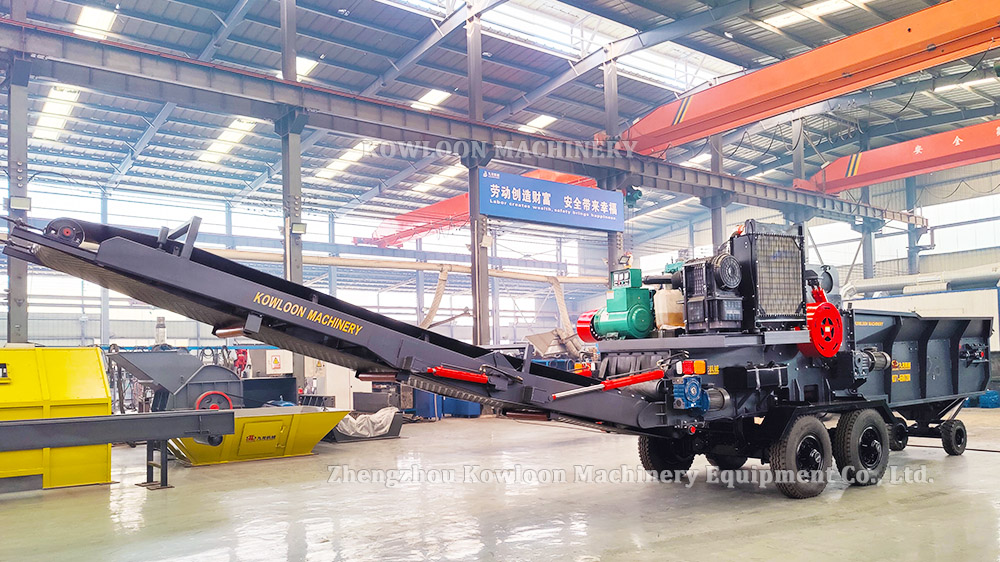

Kowloon Machinery has 20 years of technology accumulation and specializes in the production of solid waste recycling equipment, such as biomass waste, waste tires, scrap metals, large waste, industrial waste, agricultural and forestry waste, etc., and provides targeted recycling solutions. Our products have obtained multiple patents and CE, ISO certifications. At present, our solid waste recycling projects cover Poland, Czech Republic, Romania, Russia, South Africa, Algeria, Brazil, Saudi Arabia and many other countries.
|
Model |
SWC800 (stationary) |
SWC1000 (stationary) |
SWC1300 (stationary) |
SWC1400 (stationary) |
SWC1600 (stationary) |
|
Infeed size |
800*400 mm |
1000*400 mm |
1300*400 mm |
1400*400 mm |
1600*400 mm |
|
Main Motor |
110 kw (electric) |
110 kw (electric) |
160 kw (electric) |
160 kw (electric) |
200 kw (electric) |
|
Infeed roller motors |
5.5*2 kw |
5.5*2 kw |
7.5*2kw |
7.5*2 kw |
11*2 kw |
|
Infeed conveyor |
Steel chain conveyor, length 4m, width 0.8m |
Steel chain conveyor, length 4m, width 1m |
Steel chain conveyor, length 4m, width 1m |
Steel chain conveyor, length 4m, width 1.4m |
Steel chain conveyor, length 6m, width 1.6m |
|
Blade/Hammer |
Made of H13 |
||||
|
Rotor diameter |
φ650mm |
φ650mm |
φ800mm |
φ1000mm |
φ1200mm |
|
Discharging motor power |
1.5 kw |
1.5 kw |
2.2kw |
2.2 kw |
3 kw |
|
Rotary speed of rotor |
510 rpm |
510 rpm |
510 rpm |
510 rpm |
365 rpm |
|
Working capacity |
20m³-25m³/h |
25m³-30m³/hour |
30m³-38m³/hour |
38m³-45m³/hour |
45m³-75m³/hour |
|
Weight |
8000kg |
9000kg |
9000kg |
12000kg |
16000kg |
|
Dimension |
6700*1750*2300mm |
7470*2150*2450mm |
7470*2150*2450mm |
7470*2550*2450mm |
9770*2980*2980mm |
|
Model |
SWC800 (trailed) |
SWC1000 (trailed) |
SWC1300 (trailed) |
SWC1400 (trailed) |
SWC1600 (trailed) |
|
Infeed size |
800*400 mm |
1000*400 mm |
1300*400 mm |
1400*400 mm |
1600*400 mm |
|
Main Motor |
220HP (diesel engine) |
220HP (diesel engine) |
380HP (diesel engine) |
380HP (diesel engine) |
560HP (diesel engine) |
| Diesel engine brand |
WEIFANG |
||||
|
Infeed roller motors |
5.5*2kw |
5.5*2 kw |
7.5*2 kw |
7.5*2 kw |
11*2 kw |
|
Infeed conveyor |
Length 4m, width 0.8m |
Length 4m, width 1m |
Length 4m, width 1.3m |
Length 4m, width 1.4m |
Length 6m, width 1.6m |
|
Discharge conveyor |
6 meter length, hydraulic control folding belt conveyor |
||||
|
Rotor diameter |
φ650mm |
φ650mm |
φ800mm |
φ1000mm |
φ1200mm |
|
Blade/Hammer |
Made of H13 |
||||
|
Folding discharging conveyor motor |
1.5kw |
1.5 kw |
2.2 kw |
2.2 kw |
3 kw |
|
Rotary speed of rotor |
510 rpm |
510 rpm |
510 rpm |
510 rpm |
365 rpm |
|
Working capacity* |
20m³-25m³/hour |
25m³-30m³/hour |
30m³-45m³/hour |
38m³-45m³/hour |
45m³-75m³/hour |
|
Weight |
8650kg |
9650kg |
12800kg |
13800kg |
16950kg |
|
Dimensions(L*W*H) |
6750*1750*2500mm |
7470*2150*2500mm |
7470*2550*2500mm |
7470*2550*2500mm |
9770*2980*2750mm |
