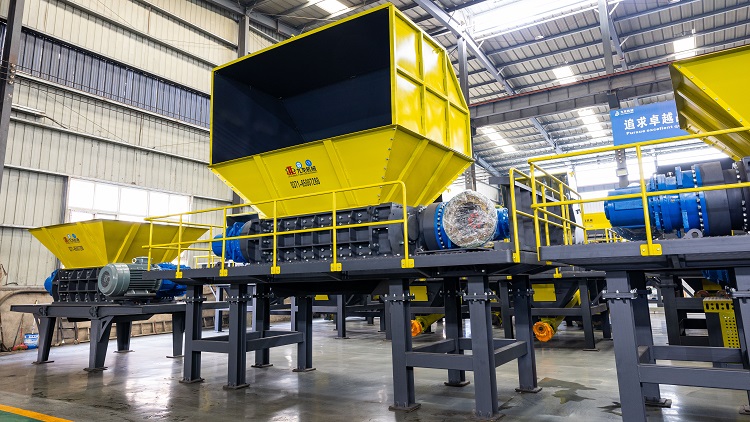

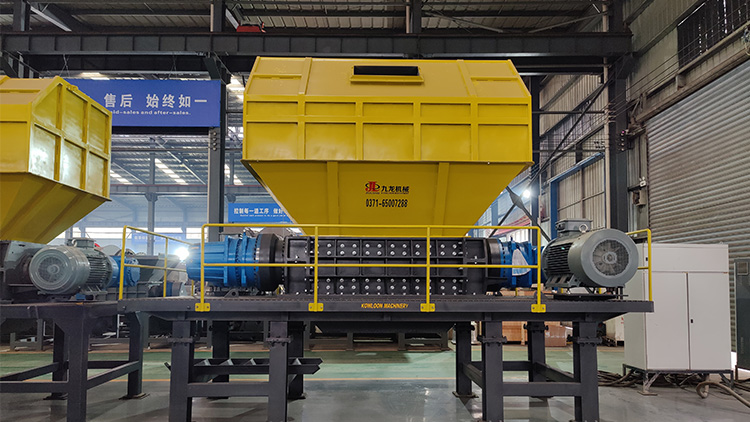

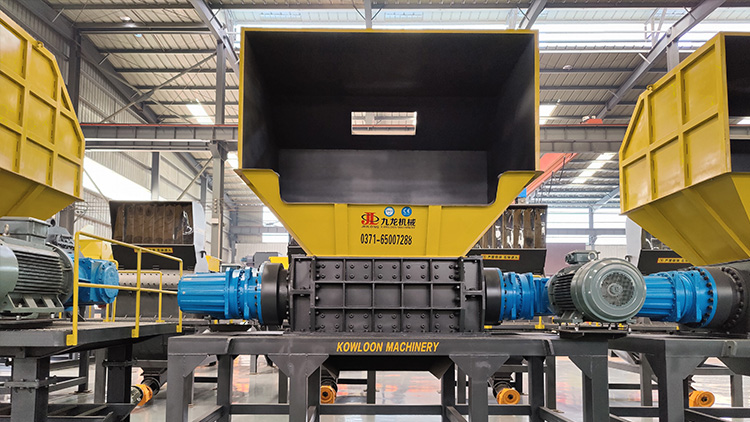

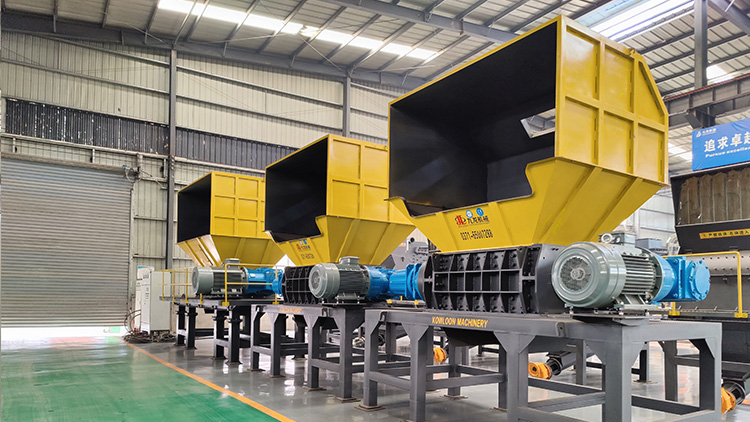

The Bulky Waste Shredder is a powerful and efficient solution designed for processing large, oversized, and difficult-to-handle waste materials. It is widely used in municipal solid waste treatment, recycling centers, and industrial waste management facilities to reduce the volume of bulky items such as furniture, mattresses, wood pallets, and mixed waste.
With a robust low-speed high-torque design, the machine delivers strong cutting and tearing performance, ensuring stable operation even under heavy loads. Its durable blades and reinforced structure allow continuous shredding with minimal maintenance, while significantly reducing waste volume for easier transportation and further recycling.
√ Home appliances: refrigerator scrap, air conditioner used, washing machine scrap, TV shell, computer shell, etc.
√ Furniture: sofa, chair, desk, cabinets, door, mattress, bed, etc.
√ Other large and medium-sized waste.
Home Appliances
Waste Furniture
Waste Mattress
Old Corrugated Containers

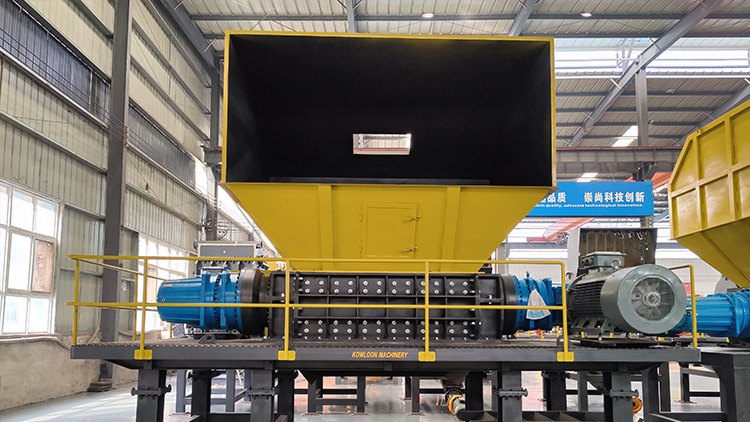

The Bulky Waste Shredder works by using a powerful low-speed, high-torque cutting system to break down large and irregular waste materials into smaller, manageable pieces. Once bulky items such as furniture, mattresses, wood pallets, or mixed municipal waste are fed into the hopper, the dual rotating shafts equipped with strong hooks, blades, or cutters grab and tear the materials with intense force. As the materials are gradually shredded, the reduced-size output is discharged through the bottom outlet or conveyed to the next processing stage, such as sorting or further crushing. Please watch the double shaft shredder working video below:
Efficiently breaks down large and irregular waste items such as furniture, mattresses, pallets, and mixed bulky waste into smaller, manageable pieces.
Ensures strong tearing force while maintaining stable and safe operation, even when processing heavy and tough materials.
Suitable for municipal solid waste, commercial waste, industrial waste, and pre-sorting recycling systems.
By significantly decreasing waste volume, it lowers storage space requirements and logistics expenses.
Designed with intelligent control and robust shaft structure to prevent clogging and ensure continuous operation.
Heavy-duty blades and reinforced components provide long service life and reduce maintenance frequency.
Prepares bulky materials for easier sorting, separation, and further recycling processing.
Supports modern waste management systems by promoting efficient resource recovery and reducing landfill pressure.

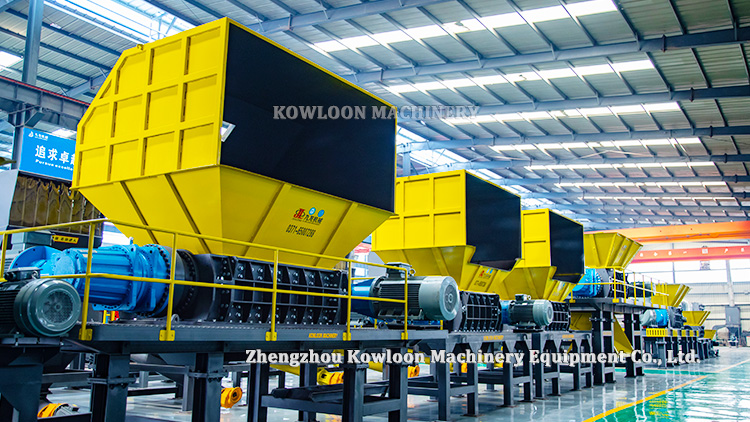

Below are the typical technical parameters of the Bulky Waste Shredder, which provide a clear overview of the machine’s structure, power configuration, and processing capacity. These specifications may vary depending on different models and application requirements, such as waste type, throughput demand, and output size. We can advise the most suitable model base on customer's requirement.
|
Model |
JLSS1500 |
JLSS2000 |
|
Motor |
55kW+55kW | 90kW+90kW |
|
Gearbox |
2 units, planetary type, gear transmission | |
|
Shaft |
solid shaft, made of 40Cr, hardened and tempered | |
|
Shredder chamber (inner) |
1415*1010 mm | 1920*1100 mm |
|
Rotor rotary speed |
8-18 rpm | 8-18 rpm |
|
Shaft diameter |
530 mm | 560 mm |
|
Lubrication system |
with automatic oil lubricator | |
|
Dimension |
4.04*2.45*2.6 m | 5.48*2.79*3.05 m |
|
Weight |
12000 kg | 19000 kg |
The blade materials of a Double Shaft Shredder play a crucial role in determining its cutting efficiency, wear resistance, and service life. Typically, the shredder blades are made from high-strength alloy steel or tool steel, such as 9CrSi, M6V, Cr12MoV, H13, SKD-11, D2, or Cr12Mo1V1, etc. which offer excellent hardness and impact resistance.
Through advanced heat treatment processes like quenching and tempering, the blades achieve a perfect balance between toughness and durability, allowing them to withstand continuous heavy-duty shredding of metal scrap, plastics, tires, and other tough materials. In some high-end applications, surface hardening or coating technologies are also applied to further enhance wear resistance and extend blade lifespan.
With superior blade materials and precise manufacturing, the Double Shaft Shredder ensures stable cutting performance, reduced downtime, and long-term reliable operation in demanding recycling environments.
Tell us your waste type, capacity, and workshop size. Our engineers will recommend the right model, provide a price list, and design a free 2D layout plan for your recycling business. Contact us now!

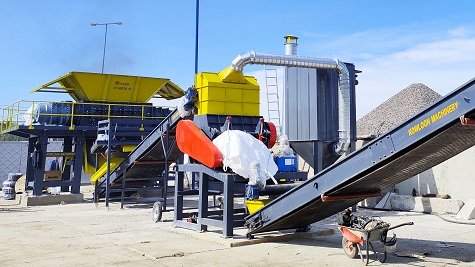

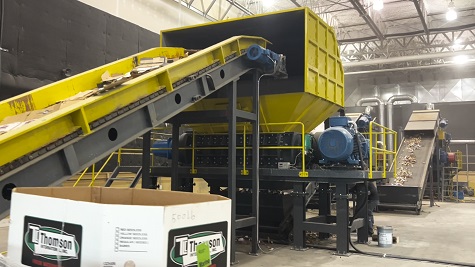

Our Bulky Waste Shredder has been successfully deployed in numerous global projects, providing efficient and reliable solutions for municipal solid waste treatment and recycling facilities. With strong adaptability and stable performance, the equipment is widely trusted by customers in different countries to handle large-volume and difficult-to-process waste materials. These project cases demonstrate its proven capability in real-world applications and highlight its role in improving waste reduction efficiency and supporting sustainable waste management systems worldwide.

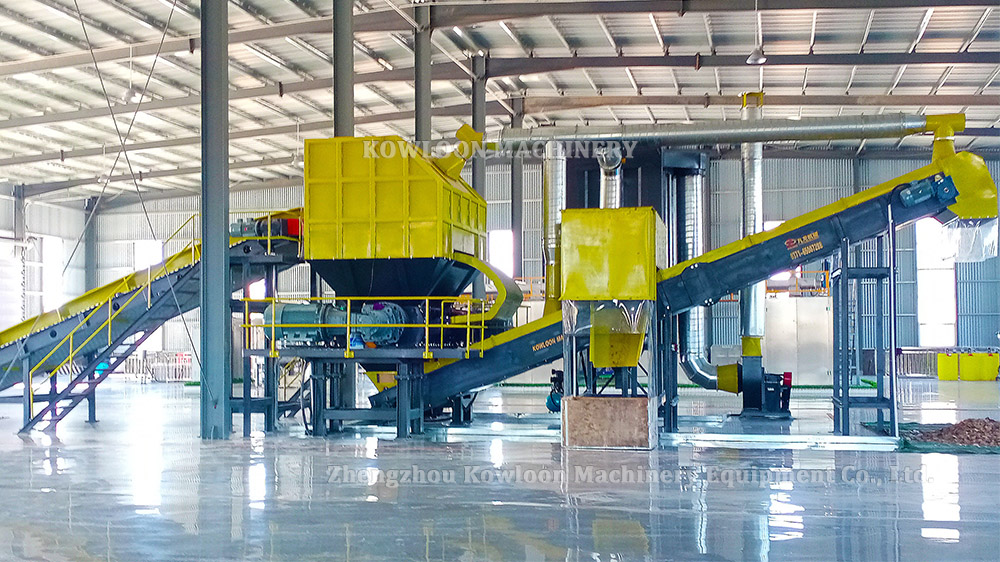

Project 1: In 2023, our Bulky Waste Shredder efficiently processes household bulky waste such as sofas, wooden furniture, and mattresses, significantly reducing landfill pressure and improving recycling efficiency.

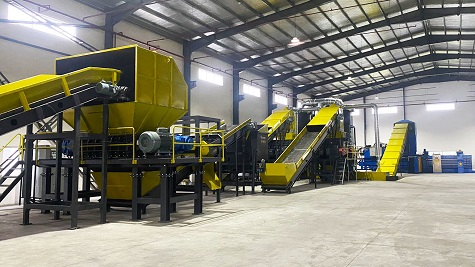

Project 2: We provide complete OCC Dry Pulping Plant Equipment including Bulky Waste Shredder for our Philippine customer, helping the client achieve faster pre-treatment and higher material recovery rates with stable continuous operation.
Project 3: Deployed in an industrial waste treatment project, the shredder processes construction debris and oversized waste materials, greatly reducing transportation costs and improving overall system efficiency.

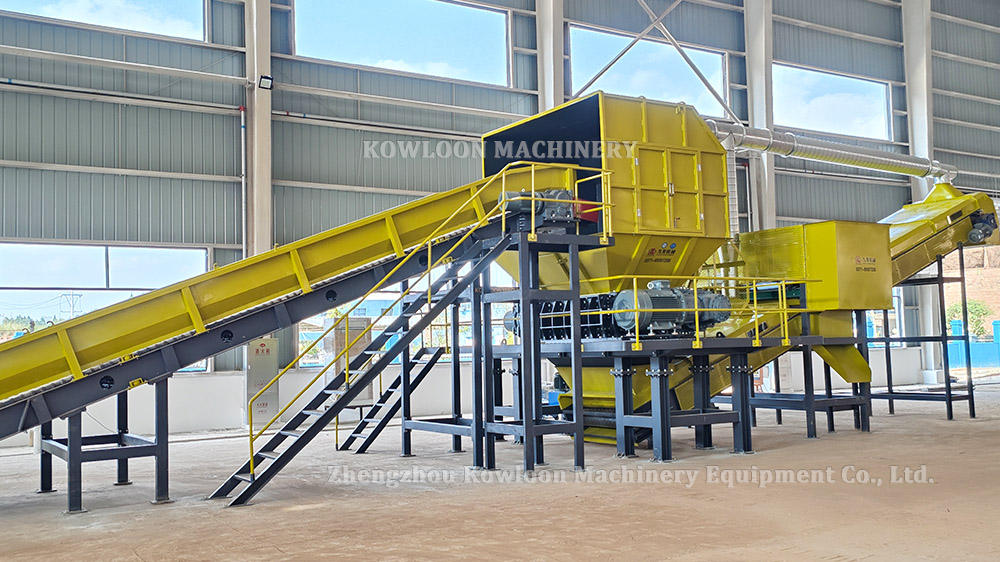

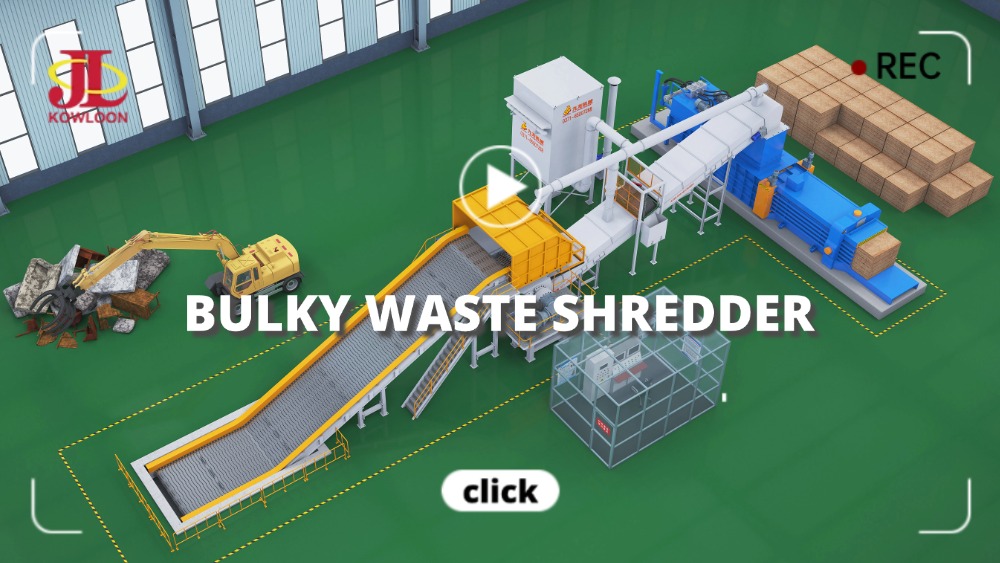

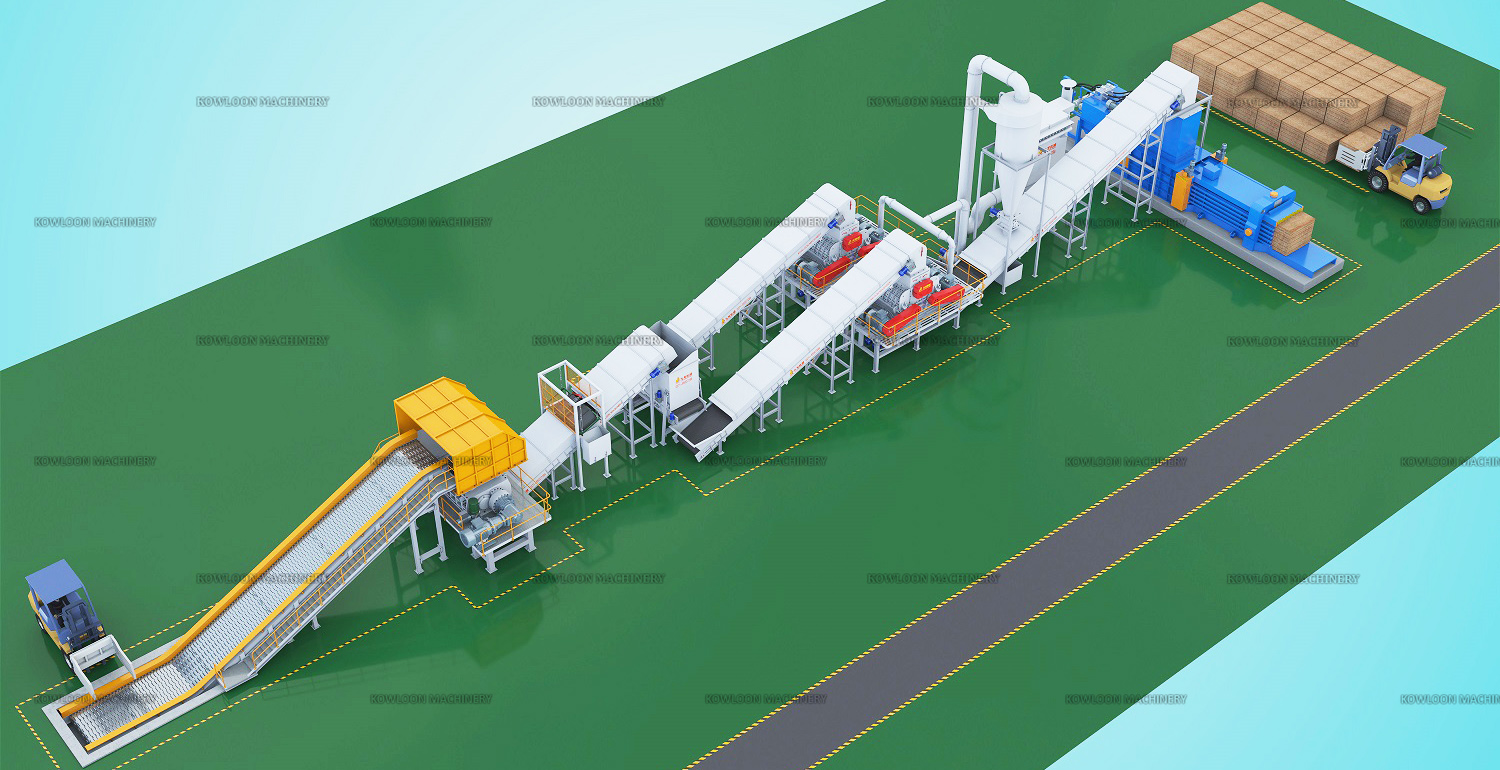

Building a recycling line with a Bulky Waste Shredder starts with designing a complete system based on the type, volume, and composition of incoming waste. As the core pre-treatment equipment, the bulky waste shredder is responsible for breaking down oversized materials such as furniture, mattresses, pallets, and mixed municipal waste into smaller, manageable pieces, creating ideal conditions for downstream processing.
A typical recycling line includes feeding systems, the Bulky Waste Shredder, conveying equipment, magnetic separation units, and sorting platforms. Depending on project requirements, additional equipment such as secondary crushers, air separation systems, or balers can be integrated to improve material purity and recovery efficiency.
With a properly configured recycling line, operators can significantly reduce waste volume, improve processing speed, and enhance resource recovery rates, making the entire waste management process more efficient, stable, and cost-effective.
A bulky waste shredder is designed to handle large and mixed waste such as furniture, mattresses, sofas, wooden pallets, plastics, textiles, doors, and household waste.
By shredding oversized waste into smaller, uniform pieces, it makes downstream sorting, separation, and recycling processes much easier and more efficient.
The output size can be controlled by adjusting the blade configuration and screen size, typically ranging from 30–200 mm depending on requirements.
Yes. It is built with heavy-duty components, wear-resistant blades, and a stable drive system to ensure long-term continuous operation.
Blade lifespan depends on the material being processed, but high-quality alloy steel blades can operate for a long period before needing replacement or reconditioning.
Yes. The machine is designed to process mixed bulky waste containing small metal parts, and magnetic separators can be added afterward for metal removal.
Bulky waste shredders are equipped with overload protection, emergency stop systems, and intelligent control panels to ensure safe operation.
Absolutely. It can be combined with conveyors, magnetic separators, screening systems, and sorting equipment to form a complete bulky waste recycling line.
Share your scrap materials, required capacity, and available space with us. Our engineers will analyze your project, recommend the suitable double shaft shredder model, and provide a detailed price together with a free 2D layout plan for your scrap recycling line.
With 20 years of experience in recycling equipment manufacturing, Kowloon Machinery provides reliable and heavy-duty double shaft shredders designed for demanding industrial applications. More than 3000 machines have been delivered to over 80 countries, serving metal recycling plants, tire recycling lines, biomass waste recycling factory, and solid waste processing projects worldwide. Every shredder is fully tested before shipment to ensure stable performance and long service life. Backed by CE and ISO certifications, professional engineering support, and customized recycling solutions, Kowloon Machinery helps customers build efficient and profitable shredding systems.
We warmly welcome customers from around the world to visit our factory and see the double shaft shredder manufacturing process in person. During the visit, you can observe raw material machining, blade production, machine assembly, and live testing with real scrap materials. This transparent process helps customers clearly understand our production standards, quality control, and equipment performance before placing an order.
Our engineers will also provide on-site explanations and discuss your project requirements, offering practical suggestions for your waste recycling line. A factory visit is the best way to build confidence in the machine quality and our long-term cooperation.
To ensure long-term, stable operation of the double shaft shredder, we provide a complete spare parts supply system and reliable after-sales support. Key components such as shredder blades, shafts, bearings, and gearbox parts are manufactured with high-strength alloy materials and kept in regular stock for fast replacement. Our blade design focuses on wear resistance and easy maintenance, allowing customers to reduce downtime and operating costs.
We also offer clear guidance on blade replacement, routine maintenance, and spare parts management. With sufficient inventory and responsive technical support, customers can quickly obtain original parts and professional assistance whenever needed, ensuring the double shaft shredder continues to run efficiently in demanding waste recycling environments.
We provide complete support for the shipping and installation of every double shaft shredder to ensure smooth delivery and fast commissioning at the customer site. Before shipment, each machine is carefully packed, reinforced, and loaded to prevent damage during long-distance transportation. Detailed layout drawings, foundation requirements, and electrical connection plans are prepared in advance to help customers get ready before the equipment arrives.
After delivery, our engineers offer remote guidance or on-site installation support, including assembly, wiring, testing, and operator training. From unloading the machine to trial operation with real scrap materials, we ensure the double shaft shredder runs safely and efficiently as part of the waste recycling line.
Our double shaft shredders are manufactured in compliance with international quality and safety standards to ensure reliable performance in demanding recycling environments. The equipment is built according to CE requirements for machinery safety and follows ISO quality management standards throughout the production process. From raw material selection and machining to assembly and final testing, every step is strictly controlled to guarantee durability and operational stability. Certification documents and test reports can be provided upon request, giving customers full confidence that the double shaft shredder meets global industry requirements for waste recycling applications.
